Festo Proximity switch

Proximity switch, Brand: Festo

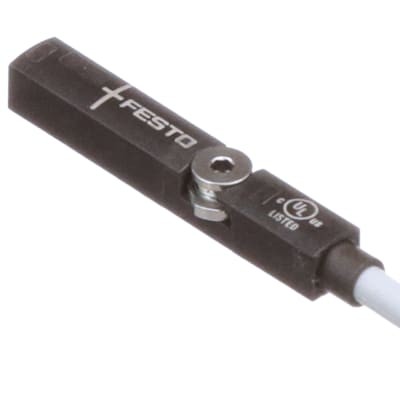

SME-8-K-LED-24 prox. switch

Design for T-slot
Conforms to standard EN 60947-5-2
Symbol 00991620
Certification RCM compliance mark
CE marking (see declaration of conformity) As per EU EMC directive
Note on materials Free of copper and PTFE
RoHS-compliant
Measuring principle Magnetic reed
Ambient temperature -40 °C ... 60 °C
Switching output Contact-based, bipolar
Switching element function N/O contact
Reproducibility of switching value +/- 0.1 mm
On time ≤0.5 ms
Switch-off time 0.03 ms
Max. switching frequency 800 Hz
Max. output current 500 mA
Min. switching capacity AC 10 VA
Max. switching capacity DC 10 W
Voltage drop 0 V
Short-circuit protection no
Overload protection Not available
Operating voltage range AC 12 V ... 30 V
DC operating voltage range 12 V ... 30 V
Reverse polarity protection no
Electrical connection 3-wire
Cable
Connection outlet orientation Longitudinal
Cable length 2.5 m
Material of cable sheath TPE-U(PUR)
Type of mounting Clamped in T slot
Can be inserted in slot lengthwise
Tightening torque 0.2 Nm
Product weight 30 g
Housing material Epoxy resin
PC
PET
High-alloy stainless steel

` 1603 ` 1522.85 (excluding Taxes) 18% GST
5% Off
