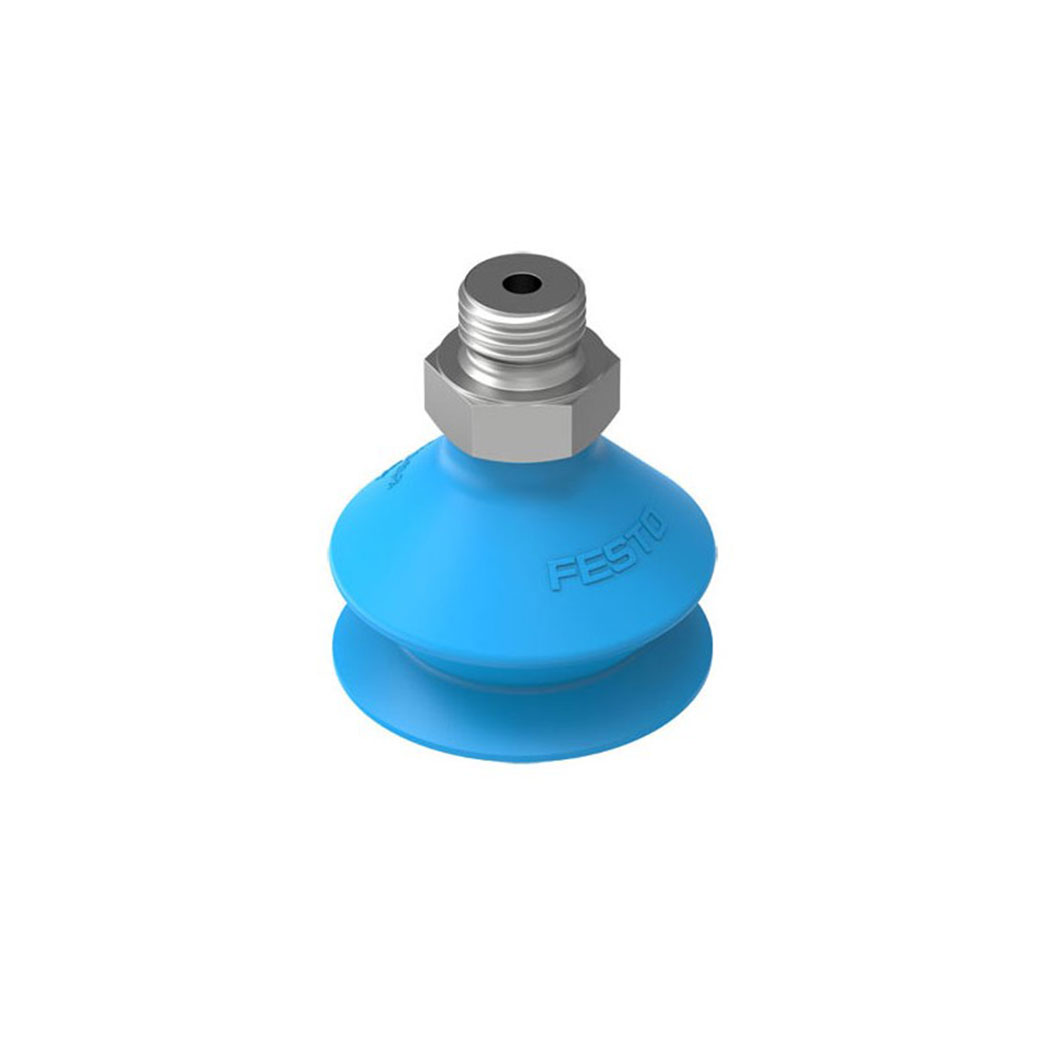

Festo VASB-30-1/8-PUR-B Suction Cup C

Suction cup, Brand: Festo
Height compensator for suction cup 13.9 mm
Nominal size 3 mm
Suction cup diameter 30 mm
Suction cup volume 6.18 cm³
Effective suction diameter 24.8 mm
Position of connection Top
Mounting position optional
Symbol 00991485
Suction cup shape Round bellows 1.5 convolutions
Operating pressure -0.95 bar ... 0 bar
Nominal operating pressure -0.7 bar
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC 2 - Moderate corrosion stress
Ambient temperature -20 °C ... 60 °C
Holding force at nominal operating pressure 34 N
Product weight 14 g
Type of mounting Via vacuum port
Vacuum connection G1/8
Colour Blue
Shore hardness 60 +/- 5
Material screw-in stud Brass
Note on materials RoHS-compliant
Material suction cup PUR

` 674 ` 640.3 (excluding Taxes) 18% GST
5% Off
