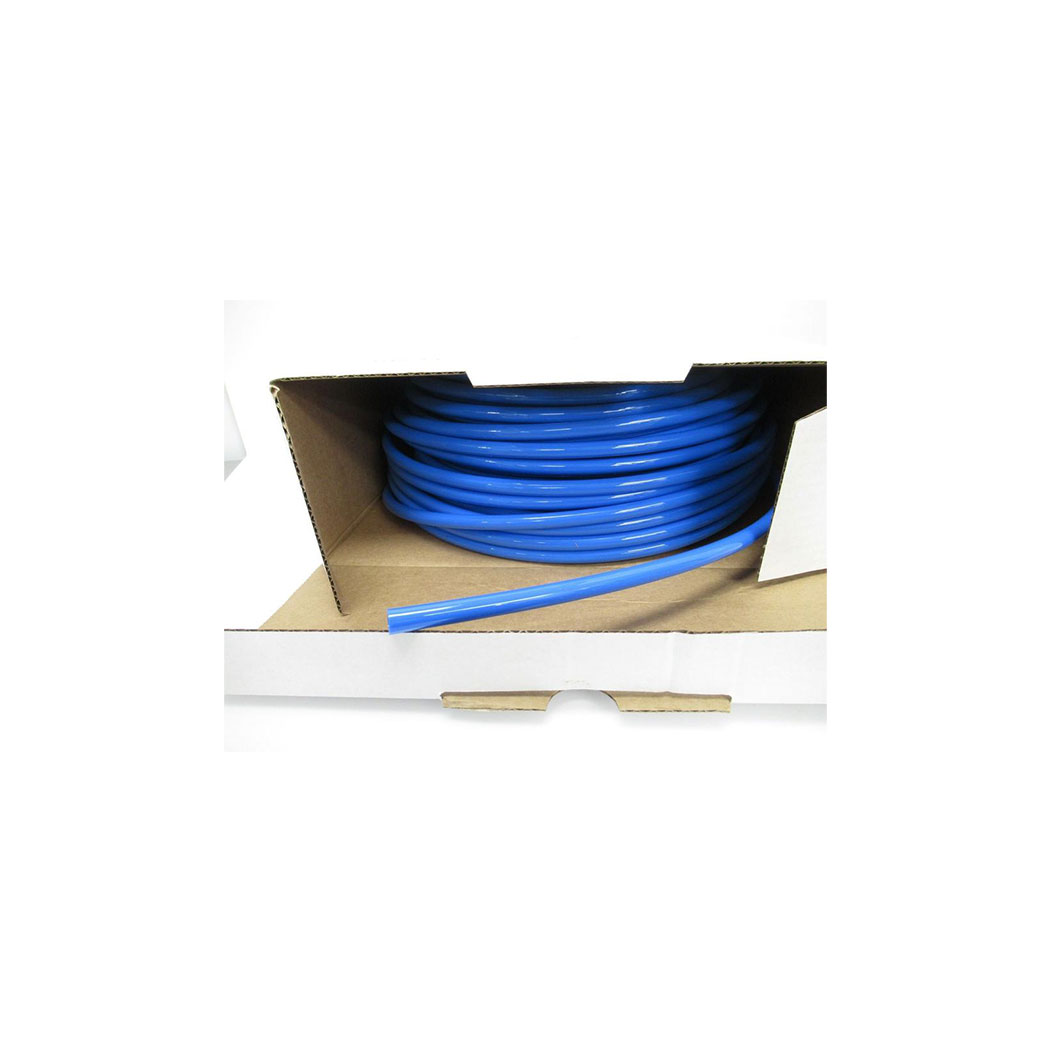

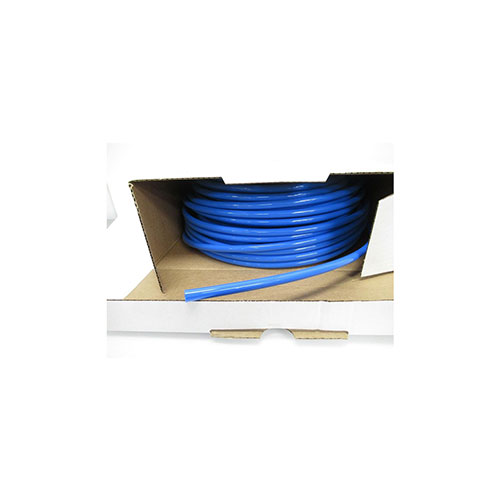

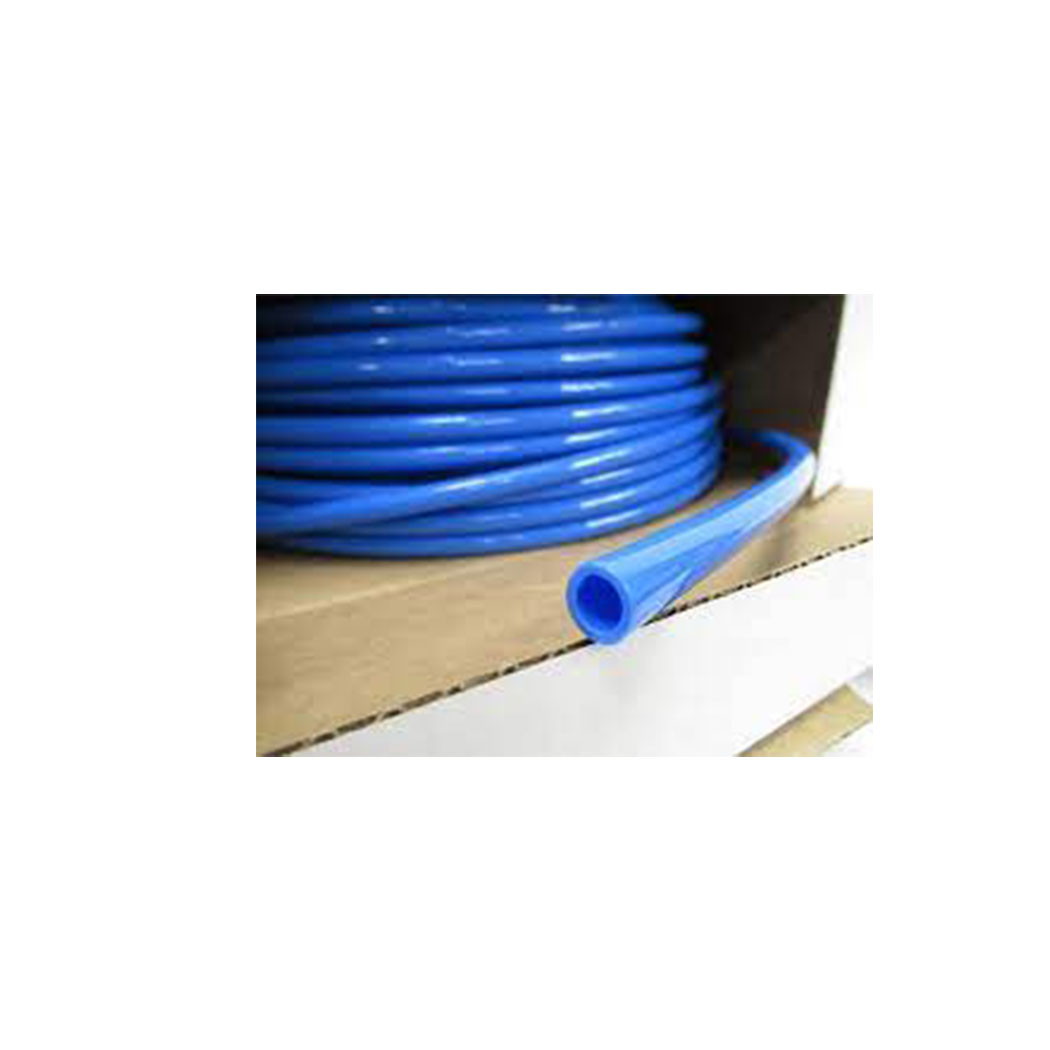

Festo BL Plastic Tubing

BL Plastic tubing, Brand: Festo
Outside diameter 10 mm
Bending radius relevant for flow rate 54 mm
Inside diameter 7 mm
Min. bending radius 28 mm
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
Temperature-dependent operating pressure -0.95 bar ... 10 bar
Certification German Technical Control Board (TÜV)
Certificate issuing authority B 013277 0506 00
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test UL94 HB
LABS conformity VDMA24364-B2-L
Ambient temperature -35 °C ... 60 °C
Product weight by length 0.0489 kg/m
Pneumatic connection For plug connection outside diameter 10 mm
Color Blue
Shore hardness D 52 +/-3
Note on materials Free of copper and PTFE
RoHS-compliant
Material of pneumatic tubing TPE-U(PU)

` 95 ` 90.25 (excluding Taxes) 18% GST
5% Off
