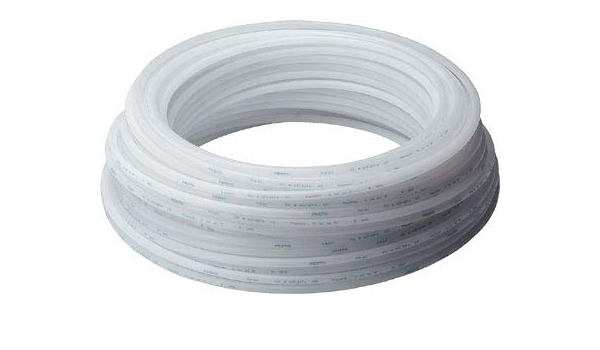

Festo SI Plastic Tubing

SI Plastic tubing, Brand: Festo
Outside diameter 8 mm
Bending radius relevant for flow rate 37 mm
Inside diameter 5.7 mm
Min. bending radius 24 mm
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
Temperature-dependent operating pressure -0.95 bar ... 10 bar
Certification German Technical Control Board (TÜV)
Certificate issuing authority B 013277 0506 00
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test UL94 HB
LABS conformity VDMA24364-B2-L
Ambient temperature -35 °C ... 60 °C
Product weight by length 0.0302 kg/m
Pneumatic connection For plug connection outside diameter 8 mm
For barbed fitting, inside diameter 6 mm, with union nut
For barbed fitting, inside diameter 6 mm
Color Silver
Shore hardness D 52 +/-3
Note on materials Free of copper and PTFE
RoHS-compliant
Material of pneumatic tubing TPE-U(PU)

` 130 ` 123.5 (excluding Taxes) 18% GST
5% Off

Select Model (AWG)

Minimum Order Quantity: 100 Meters

Note:- Actual product color might vary from that shown in the picture.

Free delivery over ` 4999

Specifications

Product Code FESTO-152589
Product Color White
Product Category Tubing

Product Application

Used in Automobile Industries for Repair & Maintenance

More Details

Style Code

FESTO-152589
